Delivery 3300T(11inch) Aluminum Profile Extrusion Double Puller to India
Delivery 3300T(11inch) aluminum profile double puller to India:

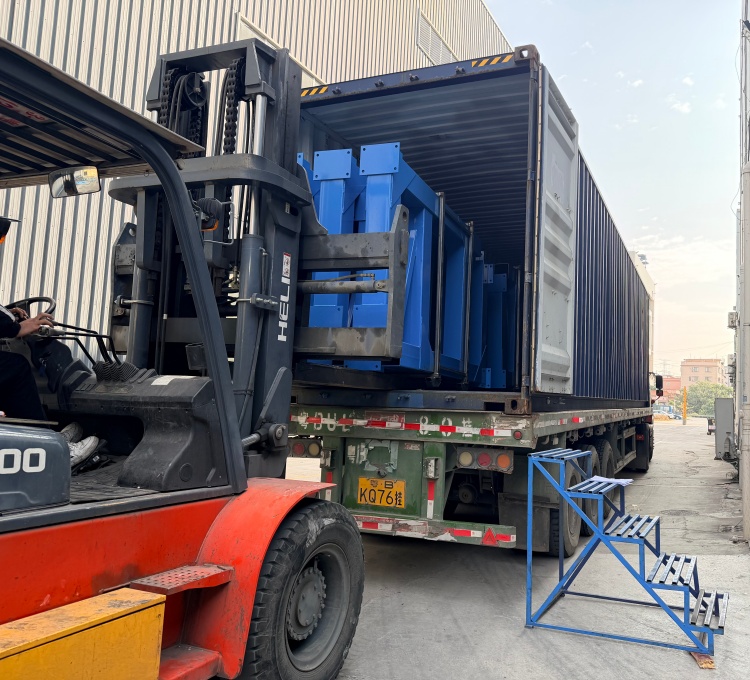

Extrusion puller walking rails loading
Aluminum extrusion double puller hot saw

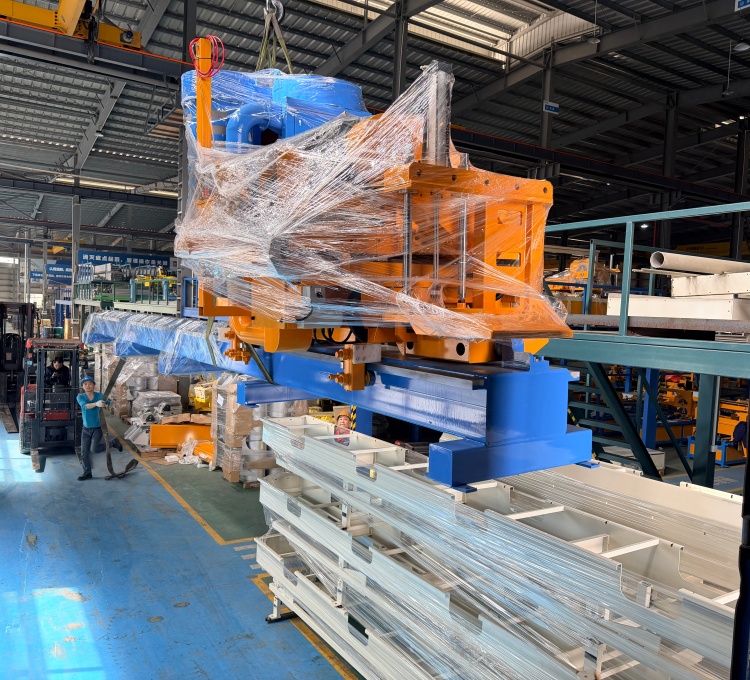

Aluminum profile double puller head and busbar,gear teetch connect rails loading

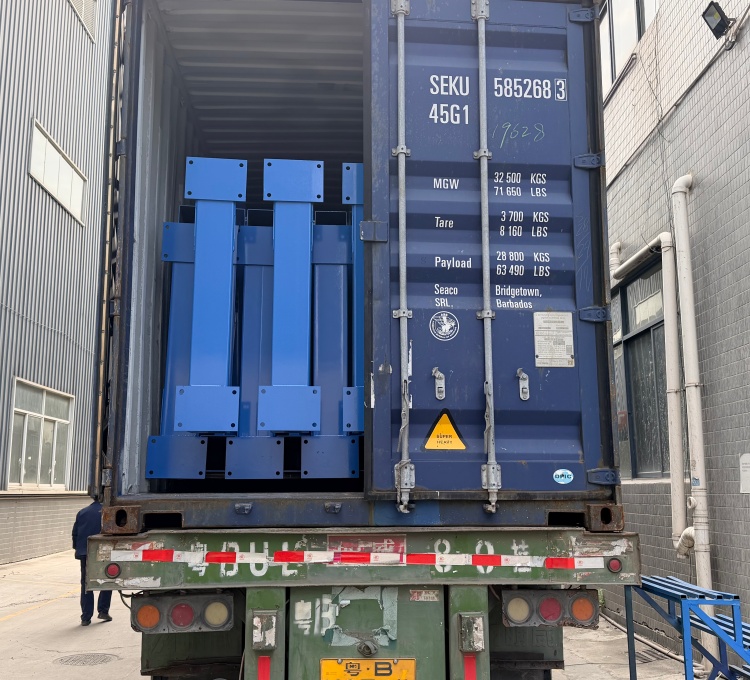

Extrusion puller support rack
Feature of aluminum extrusion double puller:
1, Full Servo control
2, Full Siemens control, Siemens Motor, Siemens PLC, Siemens Screen
3, Flexible working, match with extrusion press and handling table
4, Mature program for PLC
5, Mature design for featured aluminum profile
11inch Double Extrusion puller main parameters:
| pulling force | 500kgf |
| maximum return speed | 95m/min |
| open width of clamp | 450mm |
| open height of clamp | 300mm |
| saw machine motor power | 18.5kw |
| main puller motor power | 5kw |
| hot saw length | 10m |
| saw blade diameter | 800mm |
| scrap collector motor power | 11kw |
| total power | 51kw |
Aluminum profile extrusion puller working principle:
This equipment is mainly composed of two parts: power mechanism and P1+P2 puller head (including saw). The power mechanism adopts servo motor to drive the sprocket so that the puller head can be driven.The P1 and P2 puller head can work in an independent cycle through translation and dislocation. The two tractors cooperates with the PLC to control the servo driver to ensure the reliability of the tractor's action and the stability of walking. The jaws of the clamping device are composed of opening and closing on both sides, combined with involute arc clips with reverse self-locking tooth groups, and the servo motor drives the blade to open, close and stretch.
Advantage of aluminum profile double puller compare with single puller:
The aluminum profile double puller (single-track double-head) system for aluminum profiles offers significant advantages over single traction: it markedly improves production efficiency, ensures uninterrupted extrusion, and substantially reduces waste from stoppage, rod replacement, and cutting. The collaborative operation of dual traction heads enables precise cutting at stop marks or weld seams, ensuring profile quality and minimizing deformation. Additionally, it features high automation and broad applicability (capable of continuous cutting), making it a key equipment for enhancing the yield rate of aluminum profile extrusion.
The specific advantages of aluminum extrusion double puller are as follows:
Significantly improve productivity: The double traction machine is equipped with dual traction heads, enabling continuous extrusion operations and matching the shortest downtime for rod replacement on the extruder, thereby doubling output.
Reduce waste and costs for aluminum profile double puller: Precisely locate parking marks or welding marks for flying saw cutting, minimizing cutting waste and improving raw material utilization and yield rates.
Ensuring Quality and Reducing Deformation for aluminum extrusion double puller: The stable traction force achieved through automated control prevents deformation of the profile during extrusion, ensuring straightness of the profile.
High Automation and Intelligence: The system employs a PLC control system, typically featuring automated traction, automatic cutting, and online monitoring capabilities.
High operational efficiency for extrusion puller: The dual traction machine can adapt to the production of aluminum profiles of varying lengths and types, offering superior continuity and efficiency compared to single traction machines
Good quality extrusion puller in Chanjeou Technology Company
Contact us for extrusion puller at any time:
| email:melody@chanjeou.com |
| whats app:+86 13450531604 |
Extrusion puller working video:
