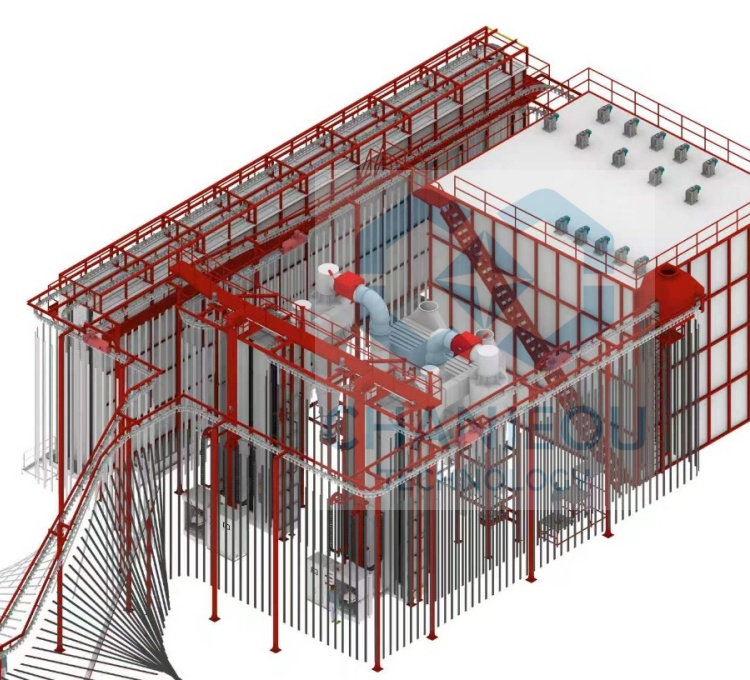

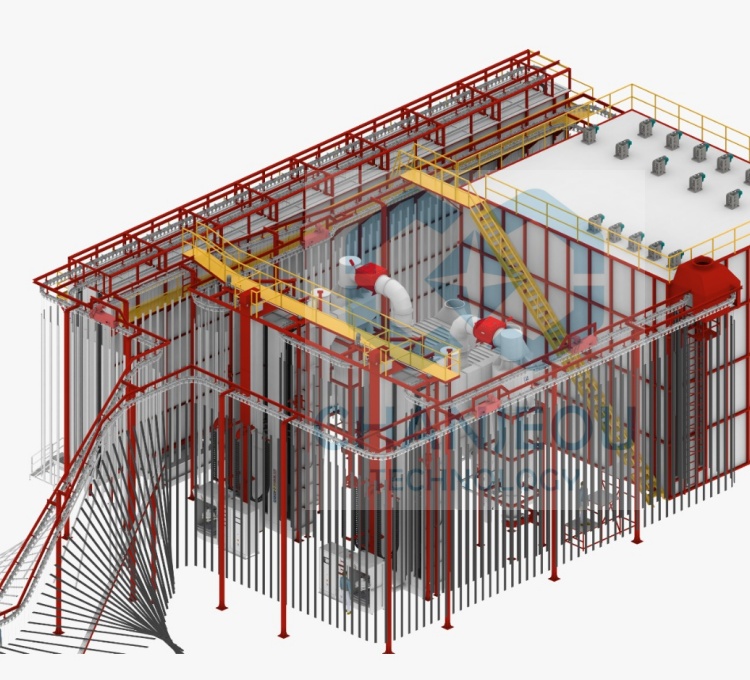

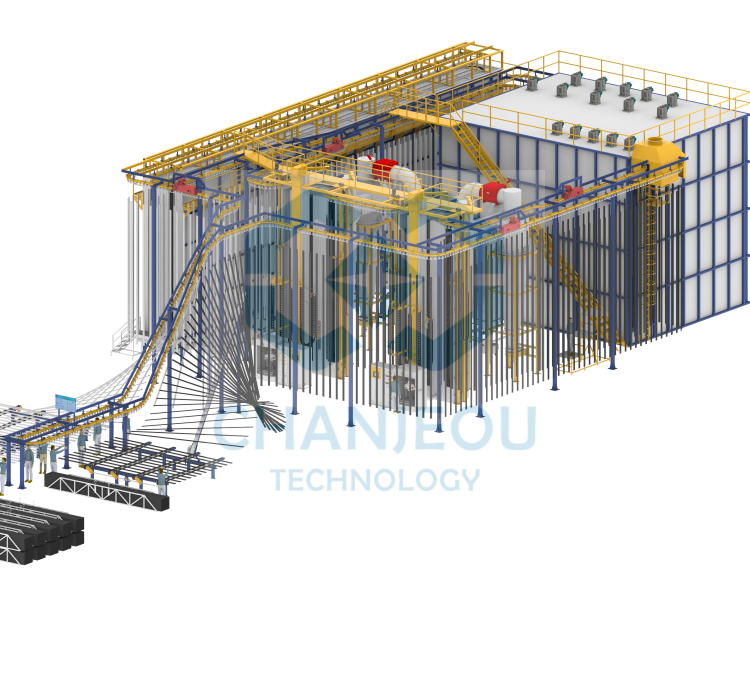

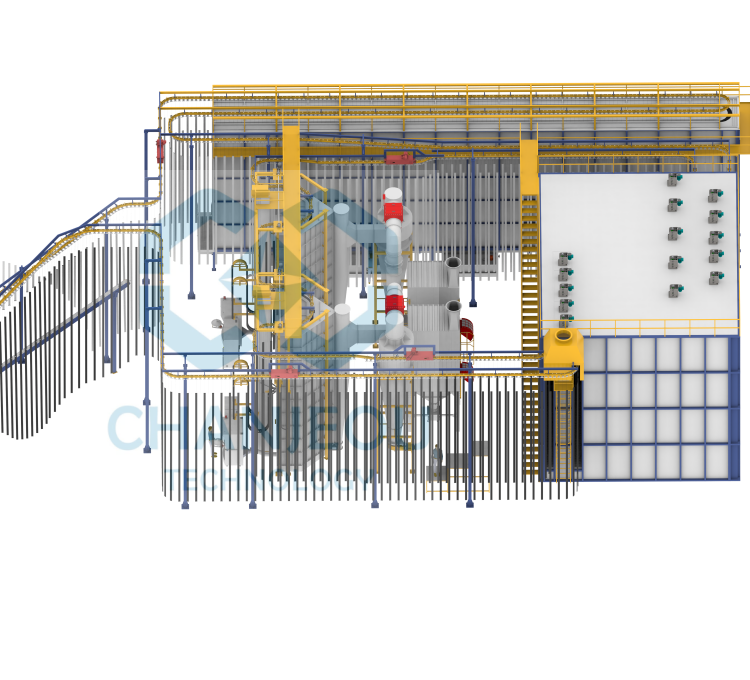

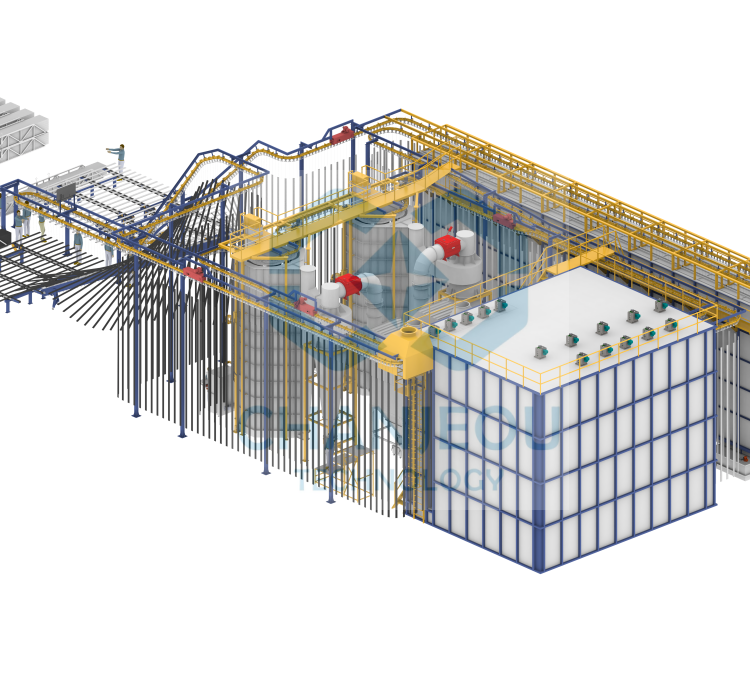

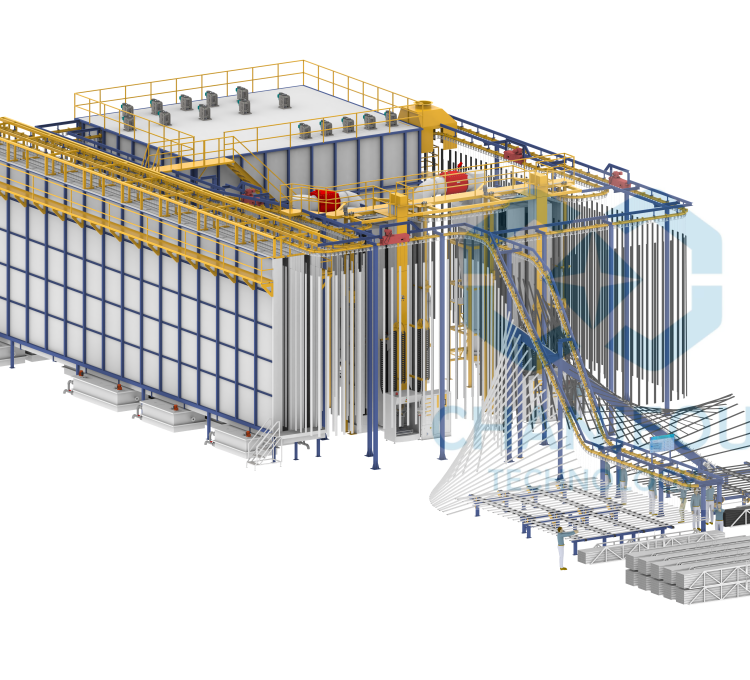

Vertical Powder Spraying Machine

Vertical powder spraying machine is compact space design vertical spraying machine ,save length of workshop,flexible design on basis of space,uniform powder spraying effect,fast color powder changing ,high quality curing effect, good for long aluminum profile spraying.

Color of Vertical powder spraying machine is customized

The core advantages of the vertical powder spraying machine for aluminum profiles can be summarized as: space-saving, stable quality, high production capacity, low labor requirements, environmentally friendly and energy-efficient, and low overall costs.

1. High space utilization (space-saving) for vertical spraying machine

Vertical suspension and three-dimensional layout, with a footprint occupying only 1/3 to 1/2 of that of a horizontal line.

Maximize the height of the factory building (requiring a clear height of 8.5–9m), suitable for scenarios with limited land availability or concentrated production capacity.

2. Superior coating quality (uniform and defect-free) for vertical powder spraying machine

The workpiece is vertically suspended, allowing 360° powder coating, ensuring more uniform powder deposition under gravity and eliminating issues such as "bottom accumulation, thick edges, and uneven surfaces" common in horizontal orientation.

High film thickness accuracy: deviation within ±5μm, with edge coverage > 95% on complex cross-sections.

The profile surface is free from dents, stamps, and zebra lines, with better flatness and adhesion.

3. High automation and large production capacity (high efficiency) for powder spraying machine

Full process automation: loading → pretreatment → spraying → curing → cooling → unloading, with only 2–3 operators per production line, reducing manpower by approximately 30%.

Doubling production capacity: single line monthly output of approximately 800–1,200 tons, equivalent to two horizontal lines; daily production of 50–80 tons.

Fast color change: Equipped with a rapid color change spray booth + large cyclone recirculation system, resulting in short color change time and minimal powder waste.

4. Energy-saving, environmentally friendly, and high material utilization rate for vertical powder spraying machine

Powder recovery rate **≥98%**, powder application rate > 85%, significantly reducing waste.

The pretreatment process achieves zero waste liquid discharge, with VOC levels far below national standards, ensuring easy compliance with environmental protection requirements.

Low energy consumption: 15%–30% more energy-efficient than horizontal lines, with waste heat from the curing furnace recoverable and reusable.

5. Low comprehensive cost (cost-effective in the long term) for vertical spraying machine

The cost per ton of profile processing is reduced by 15%–20% (labor + powder + energy).

Low defect rate and minimal rework further reduce costs.

6. Clear Logistics and Management for vertical spraying machine

Vertical suspension and straight logistics path, suitable for continuous production of 6-meter standard long profiles.

Modular design facilitates maintenance and production capacity expansion.
