Continuous Working Wood Grain Transfer Machine for aluminum Profile

Aluminum Wood Grain Transfer Machine:
1,uniform wood grain temperature
2,same wood grain color
3,higher production capacity

Email

Continuous wood grain transfer machine main advantage:

1,save labor, match with ultrasonic film welding machine

2,continuous working,improve production capacity,daily can be 10tons production capacity

3,uniform temperature,same wood grain color

4,sid loading ,save length of workshop

5,supply customized design according to condition of clients

wood grain machine

wood grain transfer machine

Main parameters of wood grain machine:

1,transfer temperature:150~200 celcius degree

2,transfer time:7~20min

3,maximum profile length:7m(customized)

4,maximum width of aluminum profile:200mm(customized)

5,maximum height of aluminum profile:200mm(customized)

6,wood grain oven size:4m width,3m height,8.5m length (customized,depend on customer production capacity)

7,working labor:4~8, depend on production capacity

After sales service from Chanjeou:

1, send engineer go to customer factory for installation, one set of machine takes 4~7days to finish installation and testing

2,or online guiding customer

3,respond at any time

4,gurantee on temperature uniform of wood grain machine

Aluminum wood grain transfer machine production photo in our factory:

aluminum wood grain transfer machine

wood grain machine

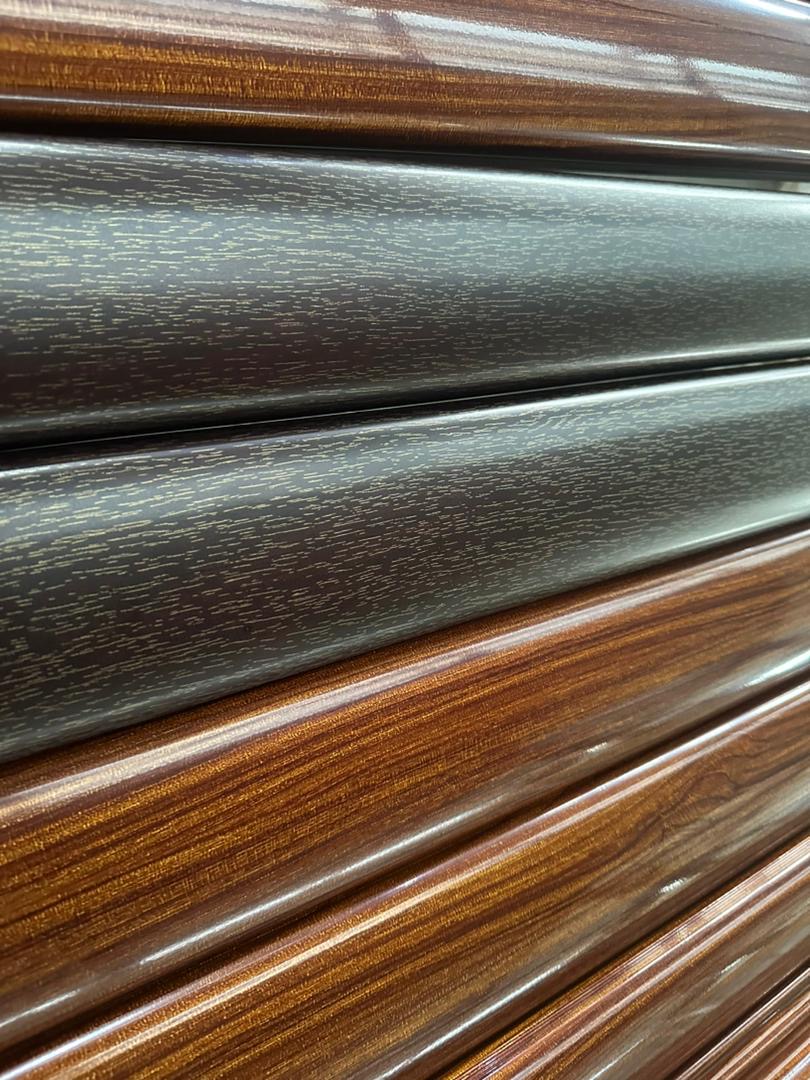

Real wood grain effect aluminum profile photon in our customer factory:

wood grain transfer machine

Difference between heat transfer wood grain and glue type wood grain:

1,heat transfer wood grain is more vertical, and more clear, more natural looking like wood

2, glue type wood grain have some mist view, but good at complicated shape of metal wood grain transfer

3,uniform temperature is very important for uniform color of wood grain

4,vacuum pressure is also very important,0.04~0.08Mpa pressure will avoid film or paper break, also let wood grain film/paper stick to aluminum very well

Chanjeou customer for wood grain machine:

Saudi arabia,Thailand,Kuwait,UAE,UK,Canada,Serbia,Mexico etc

For wood grain transfer machine, two kinds of raw material:

1, wood grain film

if use wood grain, need ultrasonic film sealing machine to make film as bag to keep vacuum

2, wood grain paper with plastic bag(PET bag)

need munual packing, buy film/paper cutting machine to slitting the paper/film size on basis of profile size

aluminum wood grain transfer machine

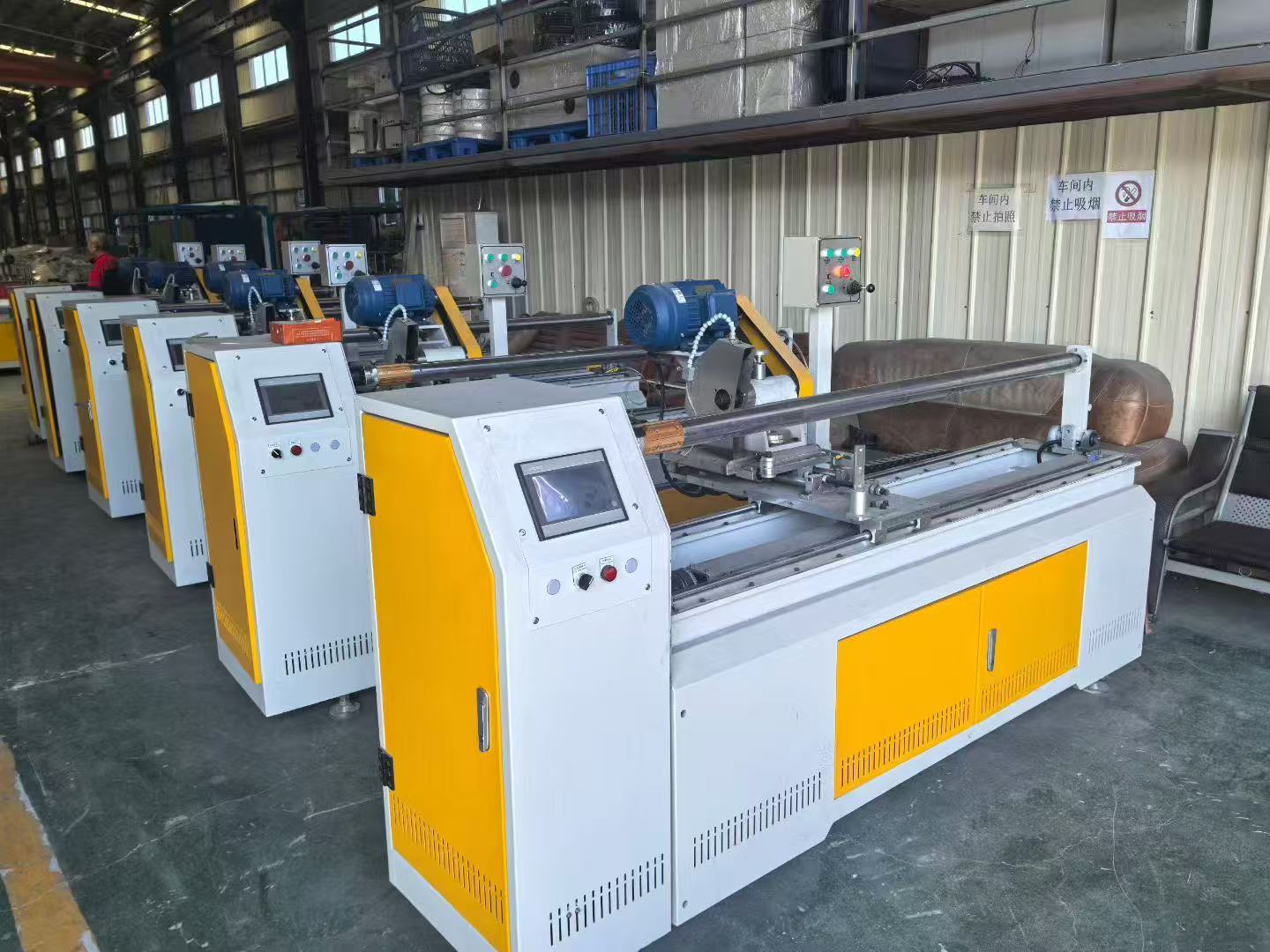

Ultrasonical film welding machine use ultrasonic to welding film edge, make wood grain film as bag, at the meantime,packing aluminum profile by wood grain film, wood grain film bag is used for later keeping vacuum and transfer wood grain from film to surface of aluminum profile

wood grain machine
