Dispatch die maintenance platform table and die oven to India

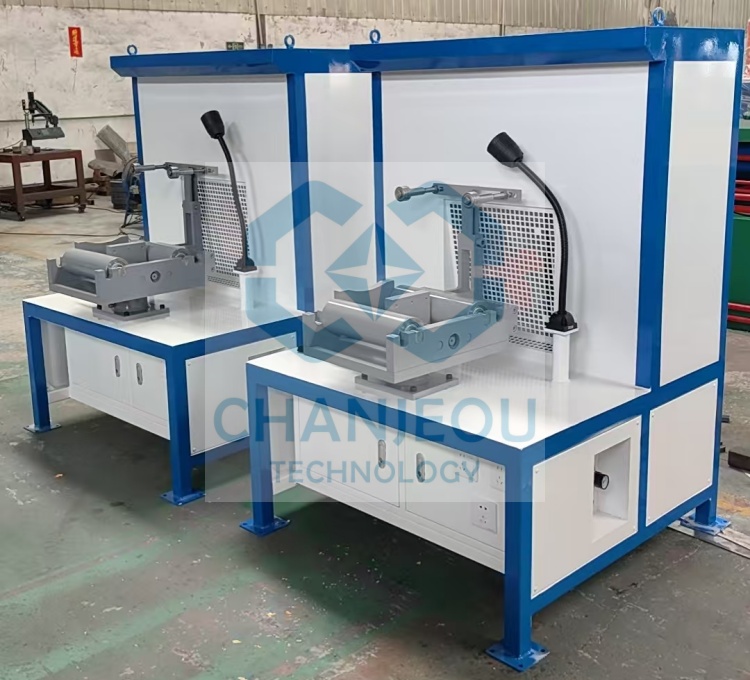

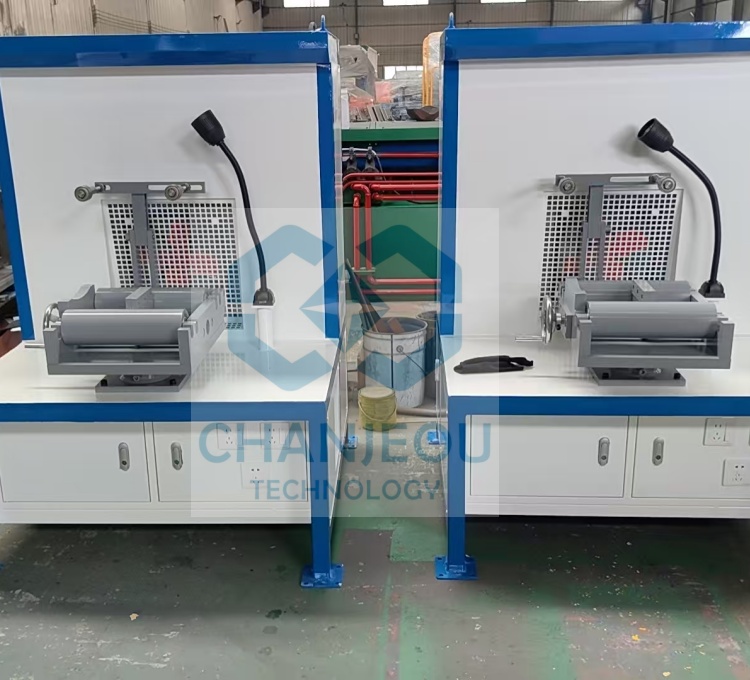

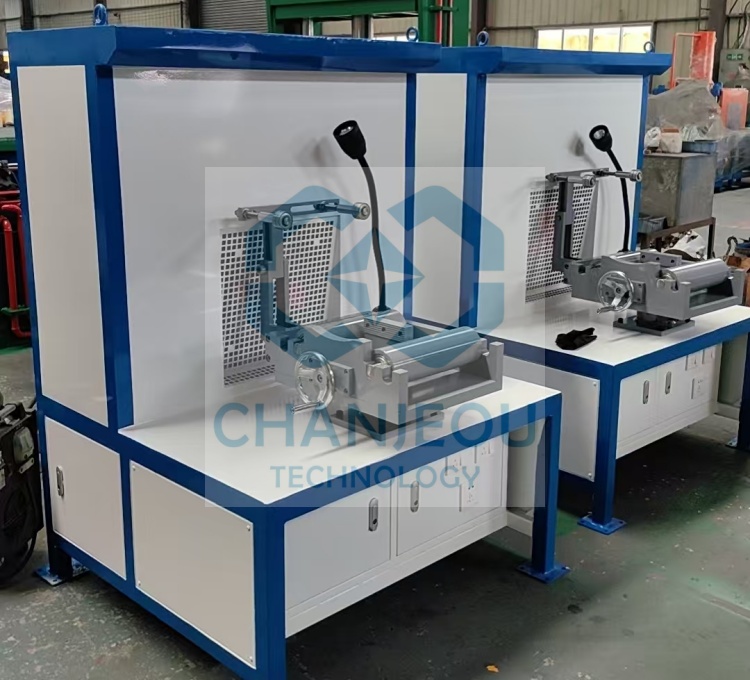

Die maintenance platform with die maintenance table is used for support extrusion die during maintenance ,with light to see more clear and more convenient, equip with dust cleaning fan to suction dust during die maintenance.
Send us extrusion die diameter and thickness for die maintenance table, will send exact quotation details:
Ф300-Ф600mm die maintenance table details:
| die diameter | Ф300-Ф600mm |
| maximum die thickness | 280mm |
| working method | horizontal and vertical 360 degree manual rotation |
| dust cleaning device | 55w |
| dust cleaning fan capacity | 1080m3/h |
| light | warm light to protect eye |
| adjustable valve | used for adjust the compressed air |
| machine size | Length 1100*Width 1200*Height 1600mm |
| machine weight | 380kgs |
Why need die maintenance platform?
1,more high precision during die maintenance
2,help to fix the extrusion die
3,more clean situation for die maintenance engineer
4, warm light protect eyes of die maintenance engineer.
Infrared die oven is used for heating extrusion die, infrared electricity heating,uniform temperature, PLC control, touch screen operation :
| extrusion press | 3000T |
| extrusion die size | diameter 550mm*thickness 280mm |
| each chamber hold extrusion die quantity | 2sets |
| chamber quantity | 4 |
| voltage | 415V,50Hz |
| PLC | siemens |
| screen | siemens |
| fan power | 1.5kw |
| heating power | 33kw/chamber |
| total power | 135kw |
Design features for die oven:
1, Stainless steel inner lining
2,each chamber two sets of thermal couple
3,good sealing for furnace door: double row high temperature asbestos rope sealing and dedicated double low pressure cylinder compression mechanism
4, automatic save temperature curves for 180days
5, each chamber control by single ,can connect with ERP system
4500T Extrusion Line Working Video with Die oven:
Extrusion die oven design type:
1, Drawer type of die oven : suitable for small dies, such as 4inch,5inch,6inch, maximum for 7inch extrusion die
2, drawer type of die oven advantage: easy to take die out
3, well type die oven :suitable for big extrusion dies, 7inch or more than 7inch
4,need make pit for well type die oven, in order to convenient crane dies
5, need arrange die crane machine, because of heavy weights of big die
Contact us for extrusion die oven,die maintenance platform and die maintenance table:
| email:melody@chanjeou.com |
| whats app:+86 13450531604 |

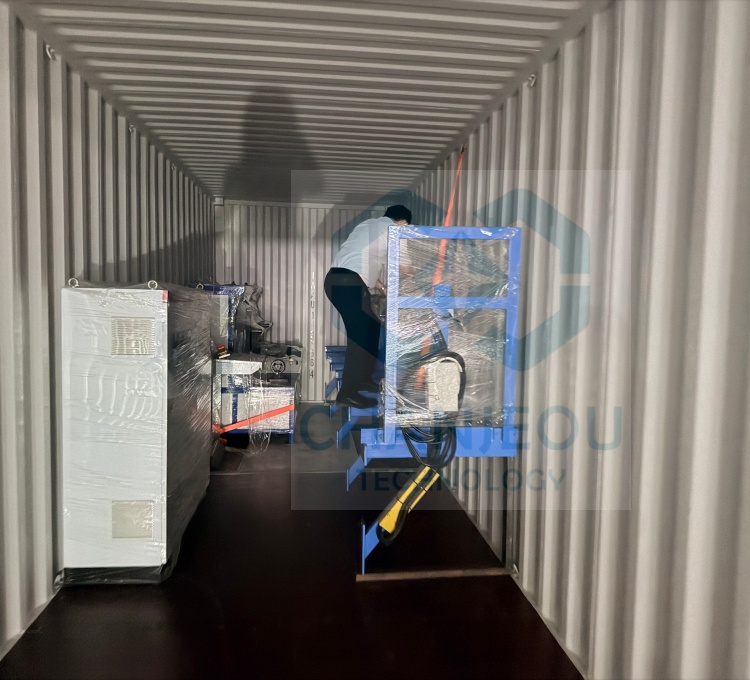

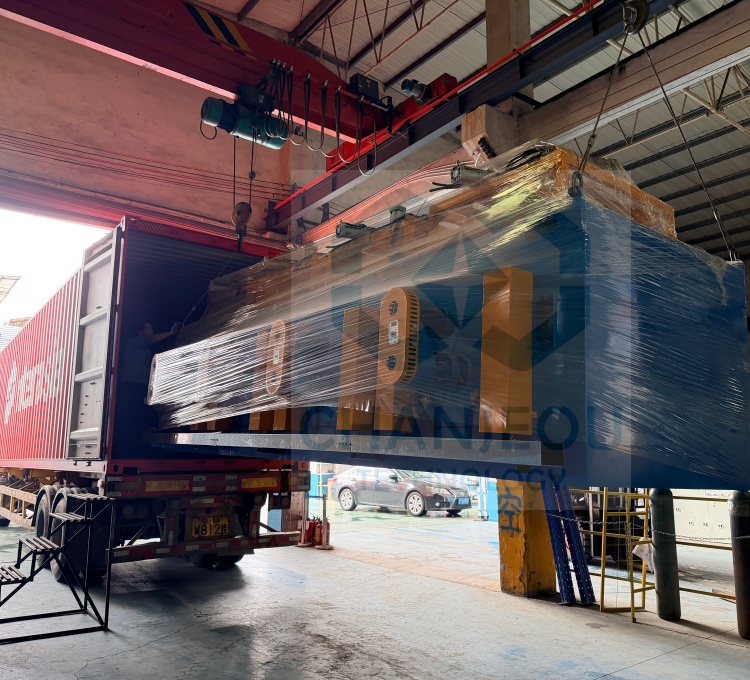

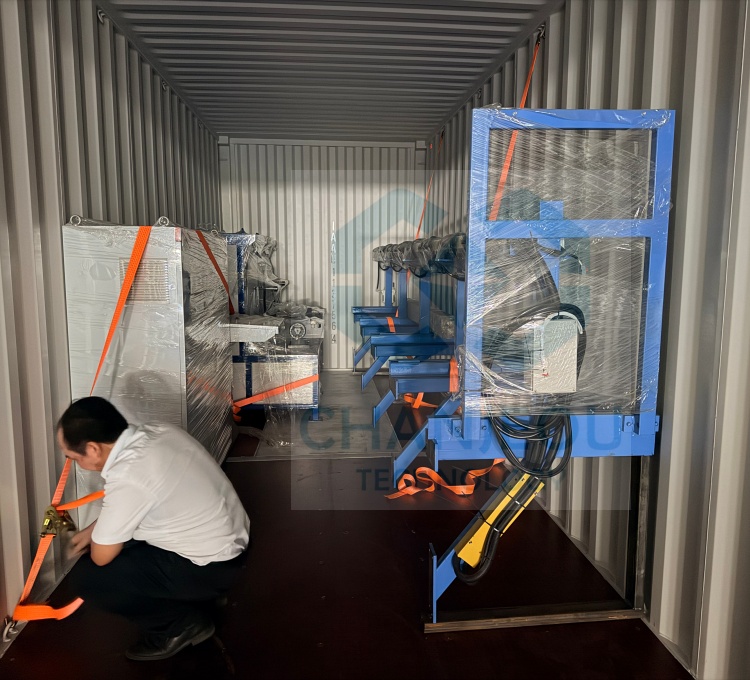

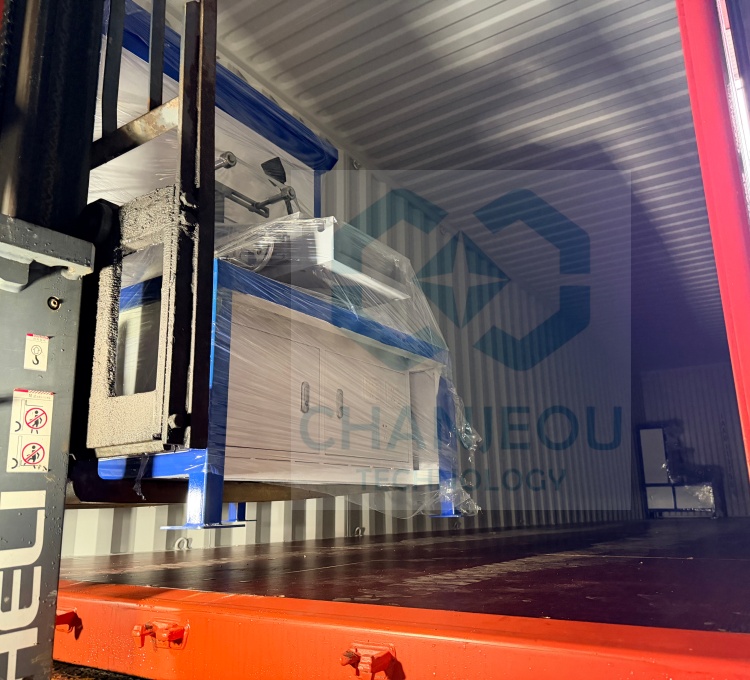

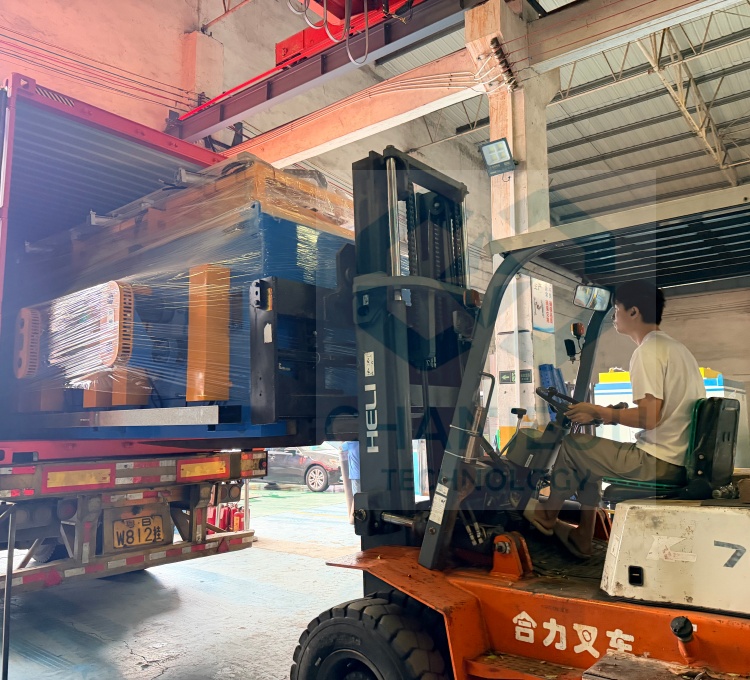

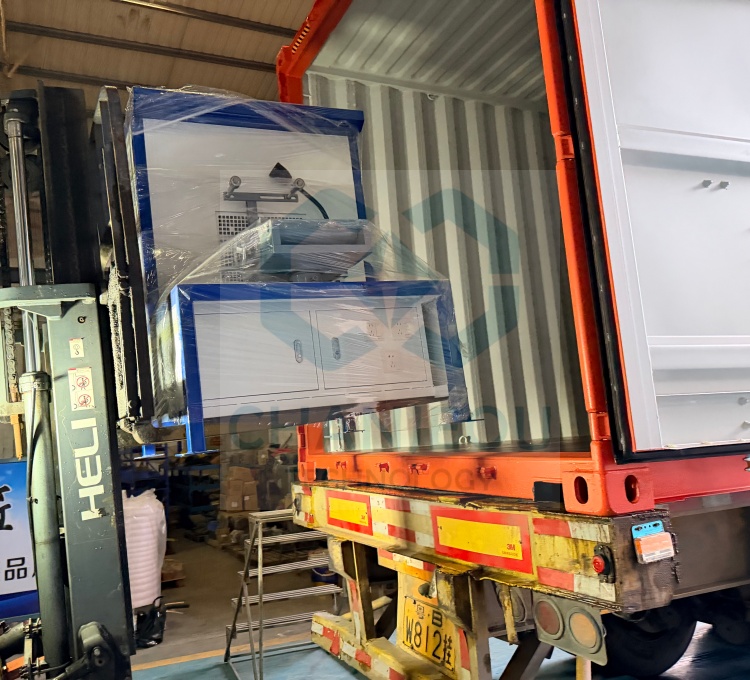

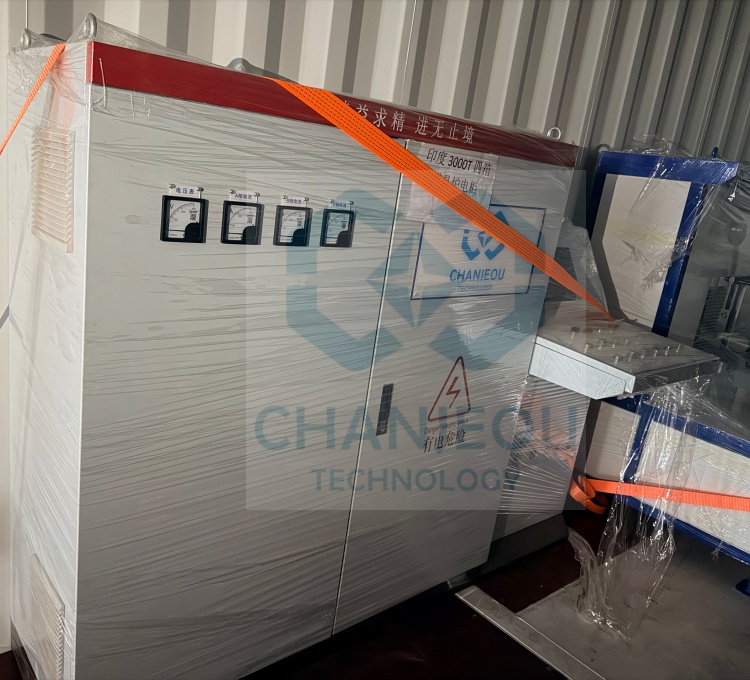

Dispatch die maintenance platform and die maintenance table,die oven photo:
Chanjeou company advantage:
1,fast delivery
2,good service
3,reasonable price
4,professional overseas team
5,honesty business attitude
6,long time business history in aluminum machinery,long time experience
7,one stop station to supply aluminum extrusion line, powder coating line, anodizing line and other auxiliary material and machinery
