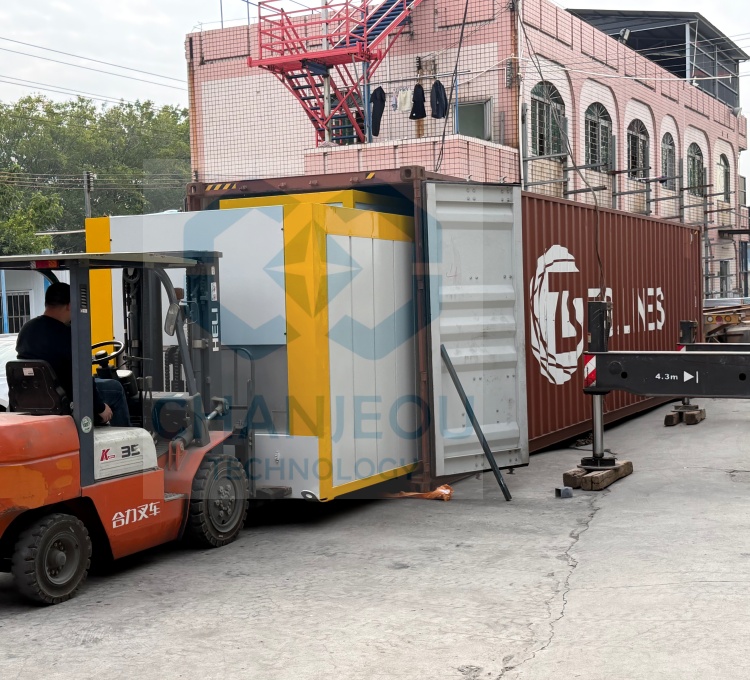

Dispatch Wood Grain Heat Transfer Machine to Phillippines
Dispatch wood grain heat transfer machine ,ultrasonic film welding machine, film cutting machine to Philippines

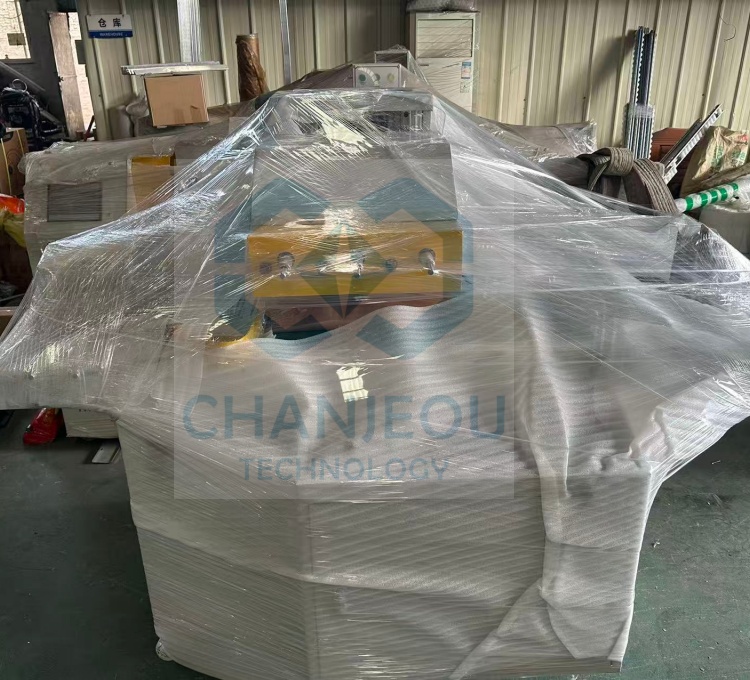

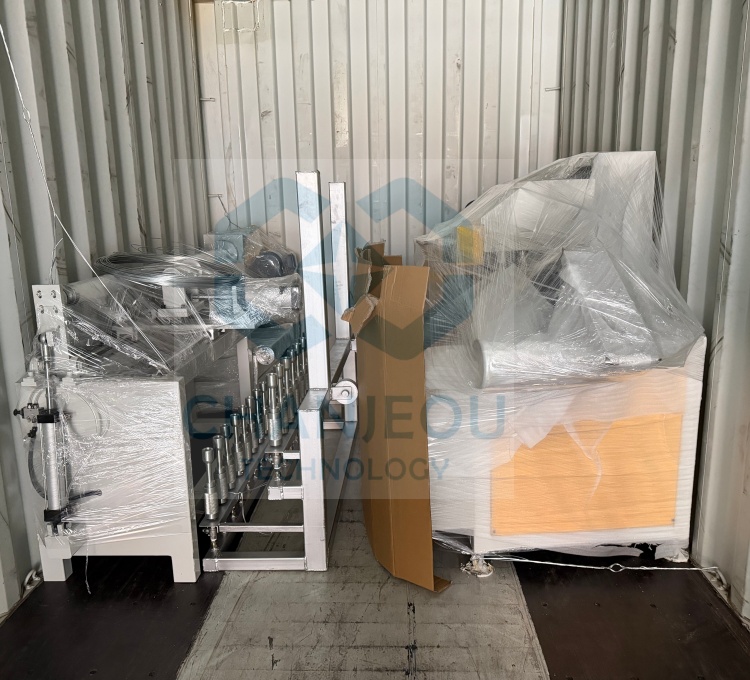

here shows film cutting machine and main body of ultrasonic film welding machine
main body of wood grain machine

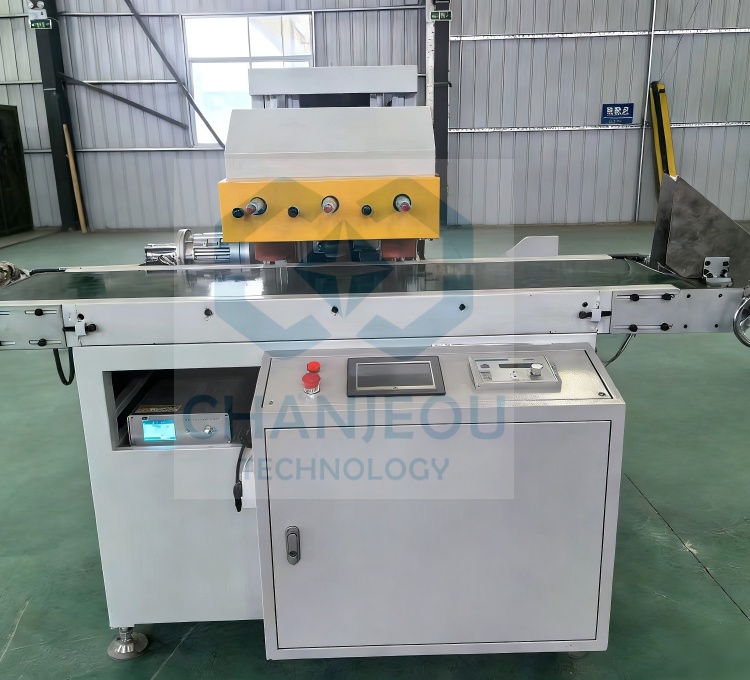

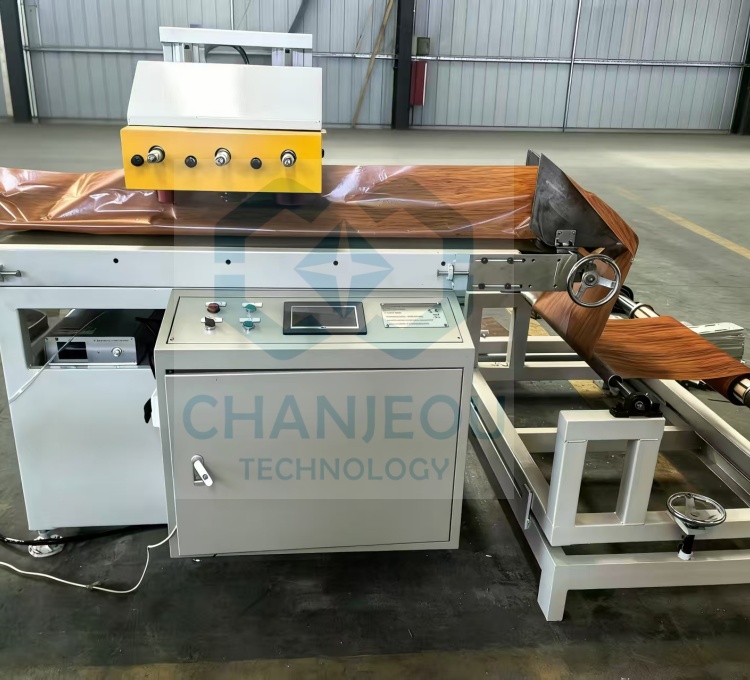

main machine of ultrasonic film welding machine
main machine of wood grain transfer machine,put the two pieces of working tables and two pieces of ultrasonic film welding machine tables into wood grain machine main body.
Design features of wood grain transfer machine:
1,two sets of single suction working table for aluminum profiles, two pieces of tables work alternatively
2,LPG heating , use Sweden Bentone burner
3,250mm thickness thermal insulation material for energy saving
4,Siemens PLC control , when temperature reach settign temperature, automatically holding temperature, when transfer time reach setting time, the door automatically open, and the table automatically come out from the heat transfer machine
5,Siemens Touch screen operation, every paremeters show on touch screen, alarm happen also display on touch screen
6,Siemens PLC control, when finish heat transfer, automatically blow air into wood grain film bag, let wood grain film lose from aluminum profile, easily move out the wood grain film
7,use good metal material and international low voltage electrical parts, such as Schneider brand.
Chanjeou company wood grain transfer machine advantage:
1, long history manufacturer
2, mature technology
3, good price
4, turnkey project availbale, including ultrasonic film welding mcahine, film cutting machine
5, supply customized design on customer requirement
6,supply big quantity,such as Mexico, Thailand, Saudi Arabia, Canada,Belarus,Russia,Serbia ,Dubai,UK etc.
Wood grain machine design key items:
1,good thermal insulation function , to save energy
2,uniform temperature to keep same wood grain transfer color
3, small temperature tolerance to make sure same wood grain transfer color
4, PLC give good control program for wood grain heat transfer machine
5,less or Zero maintenance

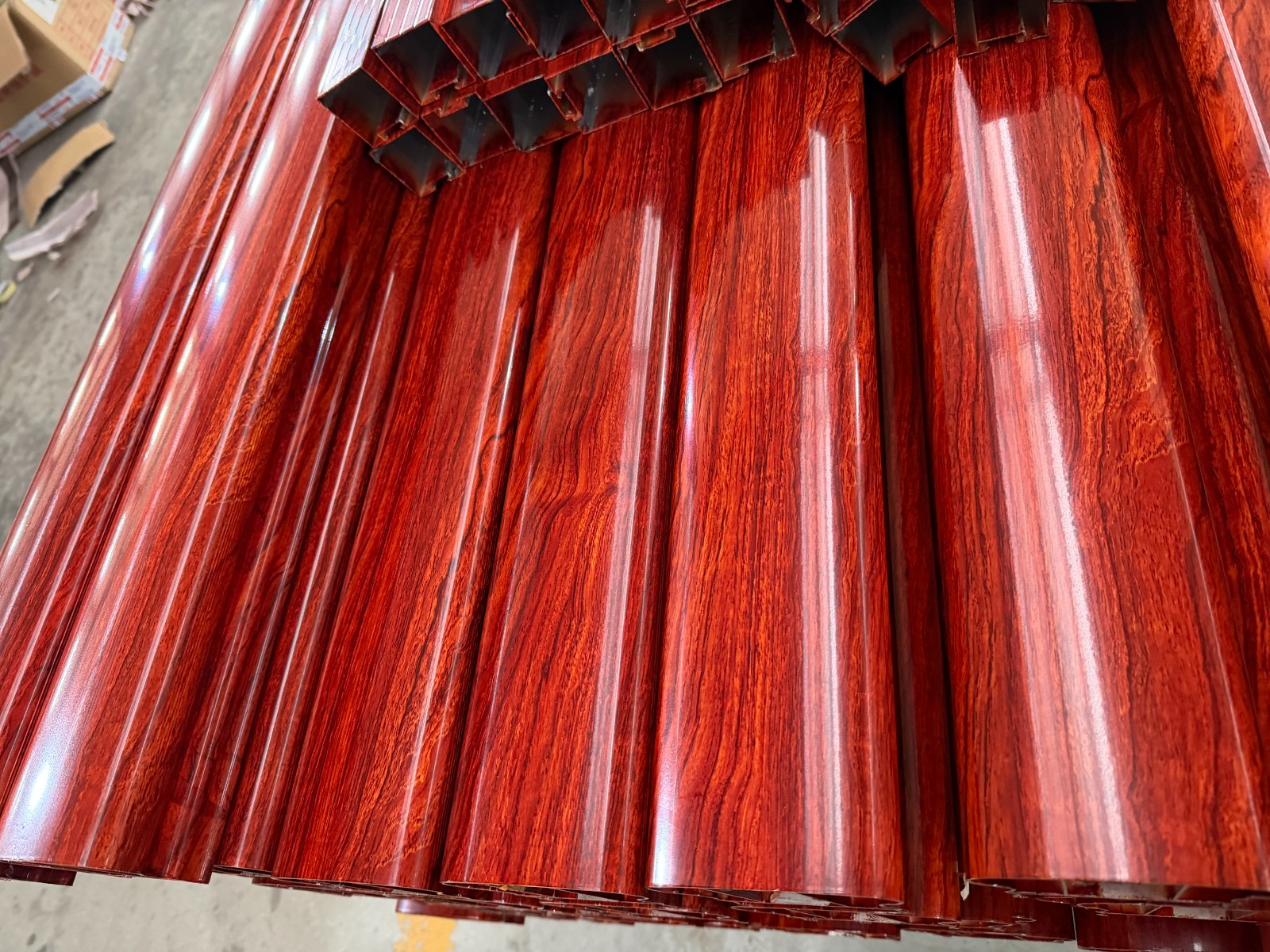

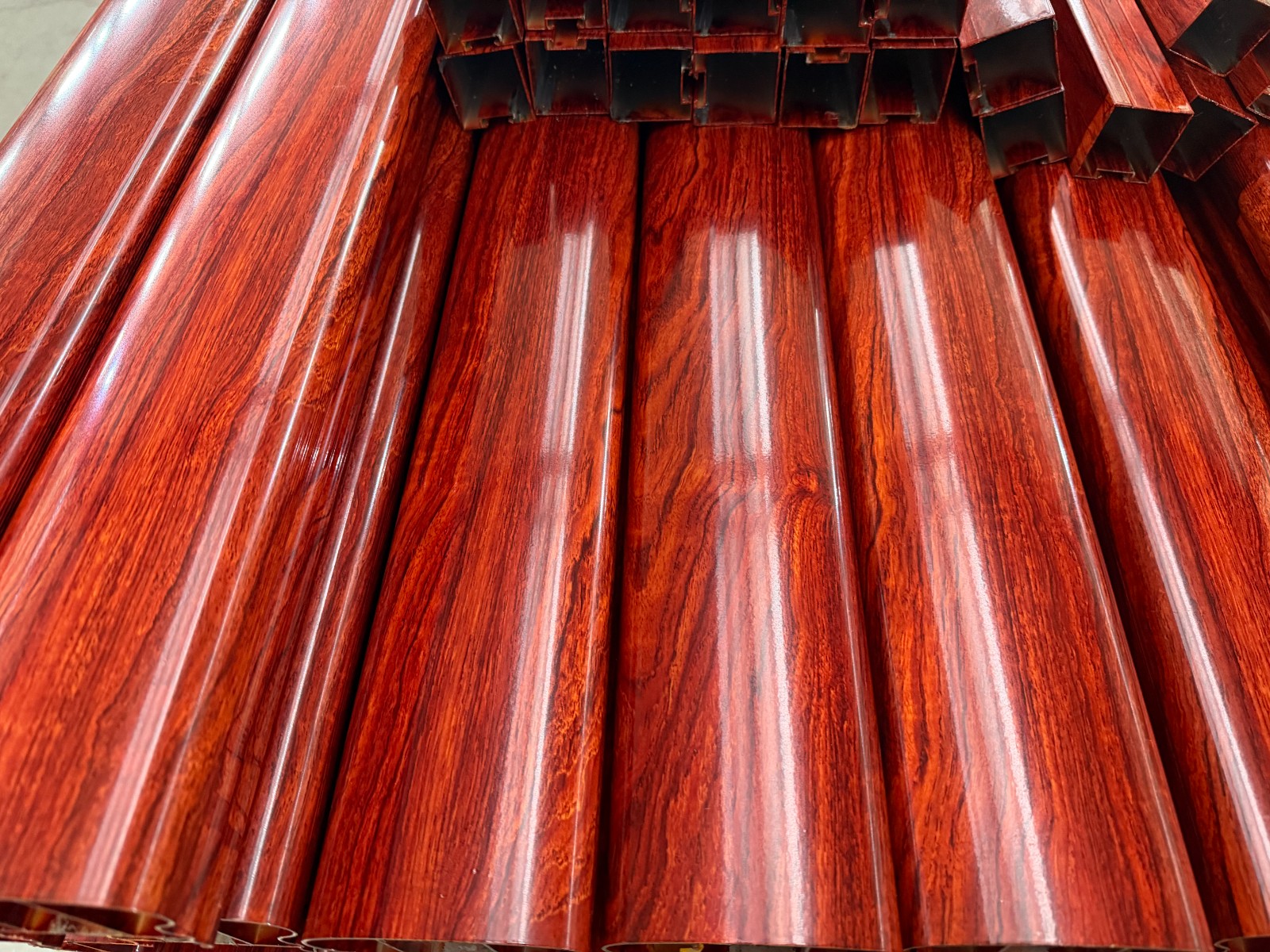

Wood grain color shows which get from our heat transfer machine:
the color of wood grain and the patten of wood grain depend on raw material,use same wood grain machine heat transfer machine
Basic pretreament before wood grain machine:
1, powder coating , must do powder coating first, because the wood grain texture is absorbed into powder, without power, can not do wood grain transfer.the powder coating machine should be earlier used before wood grain heat transfer machine.
2, the powder thickness tolerance should be small, otherwise the wood grain color will be affected
3, the powder painting quality should be good, if powder painting quality is not good, the wood grain color will be affected.
Raw material for wood grain heat transfer machine:
1, wood grain film
ultrasonic film welding machine will help to make wood grain film as bag , save labor also improve working efficiency
2,wood grain paper with PET bag
wood grain paper should be packed aluminum profile by hand
then stick the wood grain paper by hand
put wood grain paper with aluminum profile into PET bag, put them on wood grain transfer machine for heat transfer
PET bag play a function of sealing and protect wood grain paper for wood grain heat transfer machine
